Case Study: Advanced Industrial Bolting Solutions for One World Trade Center
/ HYTORC Marketing
Key project facts
- Building Height: 1,776 feet
- Stories: 104
- Floor area: 3.5 million square feet
- Spire height: 408 feet
- Spire weight: 700 tons
- Bolts installed on spire: 60
- Installation elevation: 1,701 feet
- Architect: David Childs, SOM
- Engineers: WSP Cantor Seinuk
“Our tools were used to bolt a floor-by-floor crane-jumping system that was needed during the construction of the tower itself and to bolt the spire and communication rings around it.” – Jason Junkers, HYTORC COO
Project Overview
One World Trade Center is a 104-story skyscraper in Lower Manhattan standing 1,776 feet tall with 3.5 million square feet of space. A defining structural element is its 408-foot, 700-ton steel spire, assembled in 14 distinct sections.
HYTORC Bolting Tools Used
Structural Bolting Challenges at One WTC
- Floor-Climbing Crane Systems: Securing the heavy-duty self-climbing tower crane structures used for constructing the tower itself.
- Communications Rings: Assembling and securing massive structural rings designed to hold critical broadcast and communications infrastructure near the top of the tower.

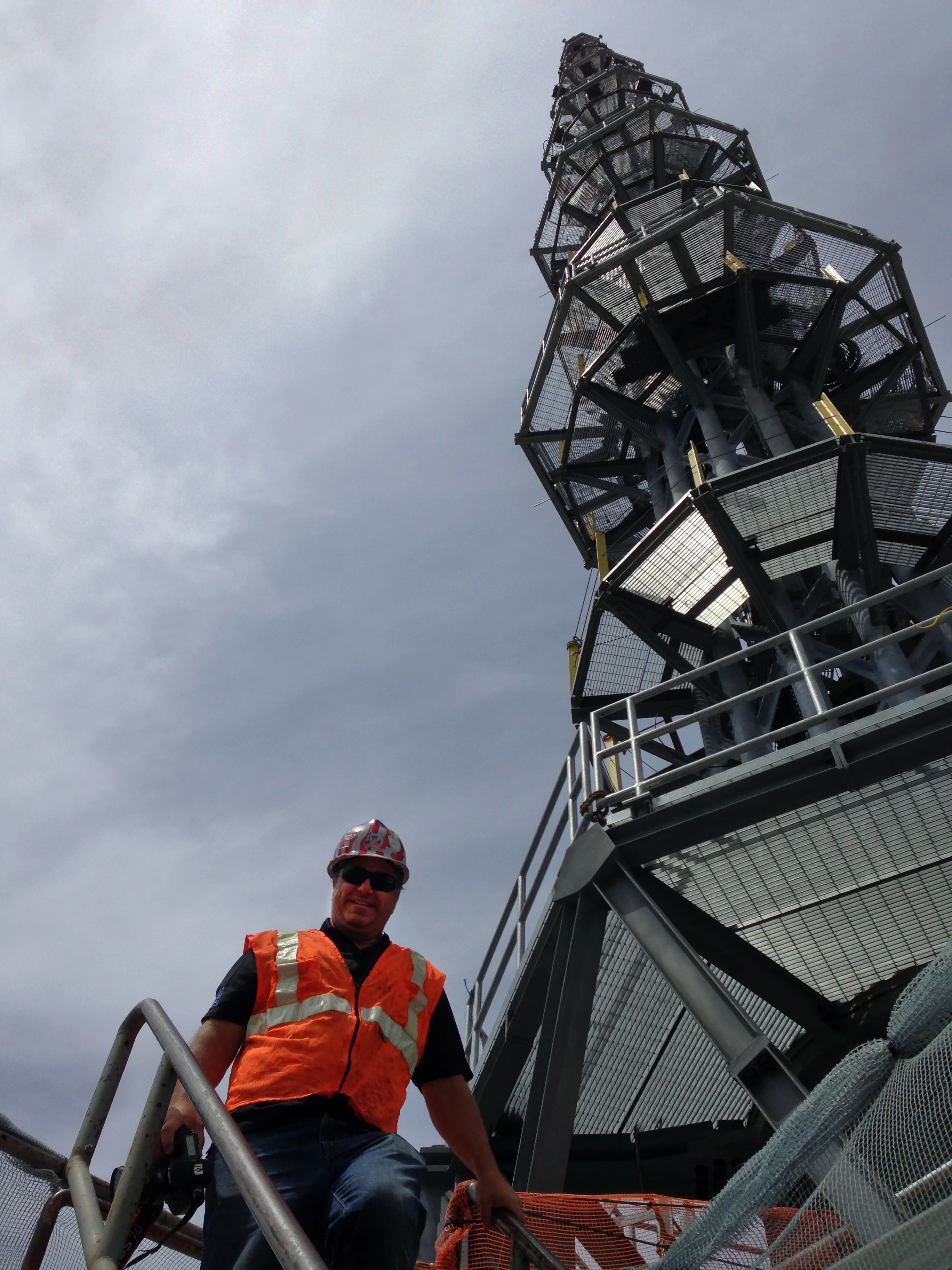

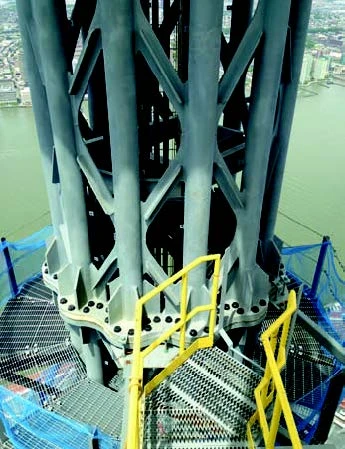

- 408-Foot Steel Spire: Torquing 60 critical structural bolts at an elevation of 1,701 feet, with each fastener requiring over 4,000 ft.-lbs. of controlled torque.
HYTORC’s Bolting Solutions for 1 WTC
HYTORC partnered with project engineers and tool operators to deliver specialized equipment, technical support, and load verification across every phase:

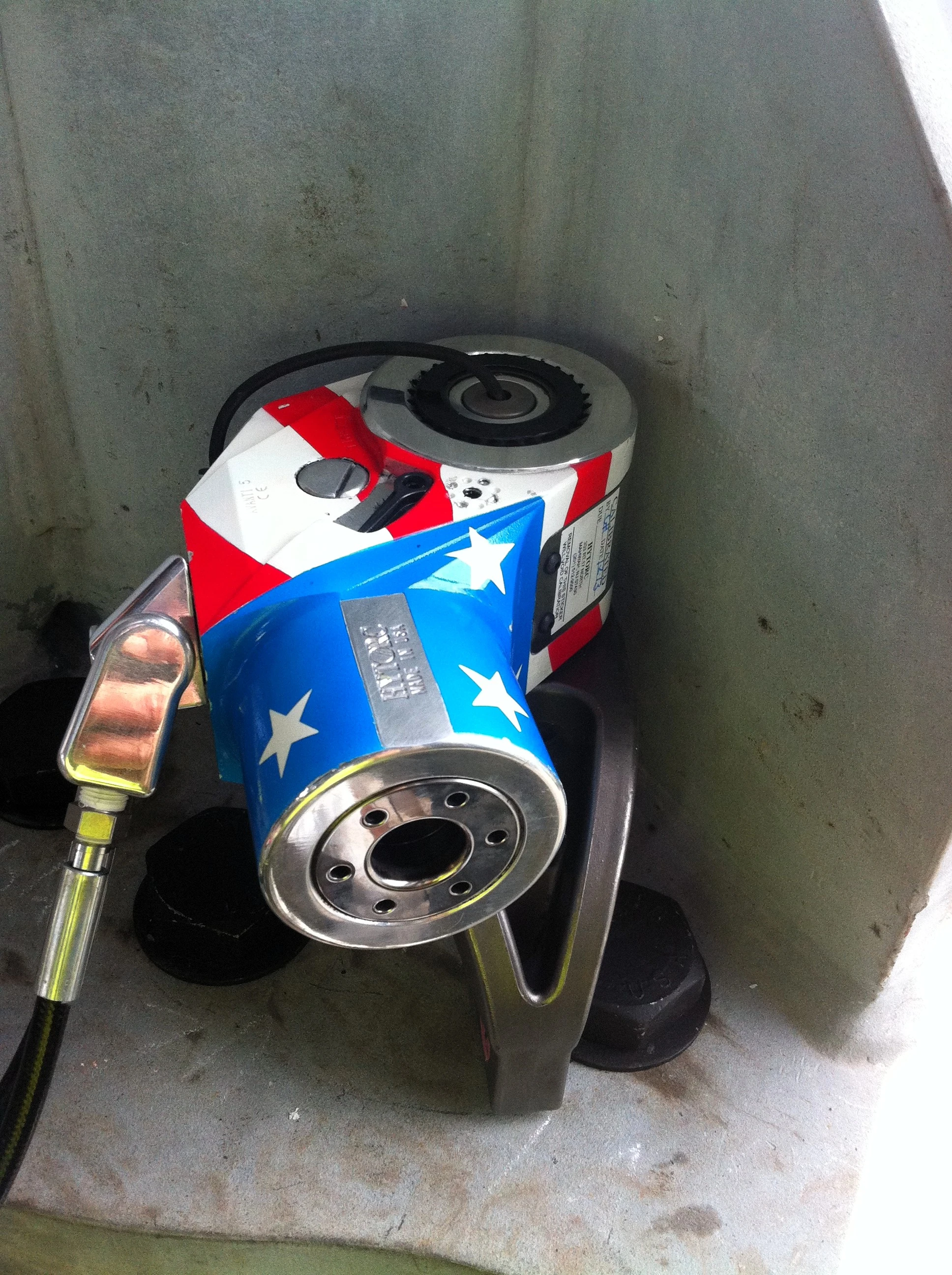

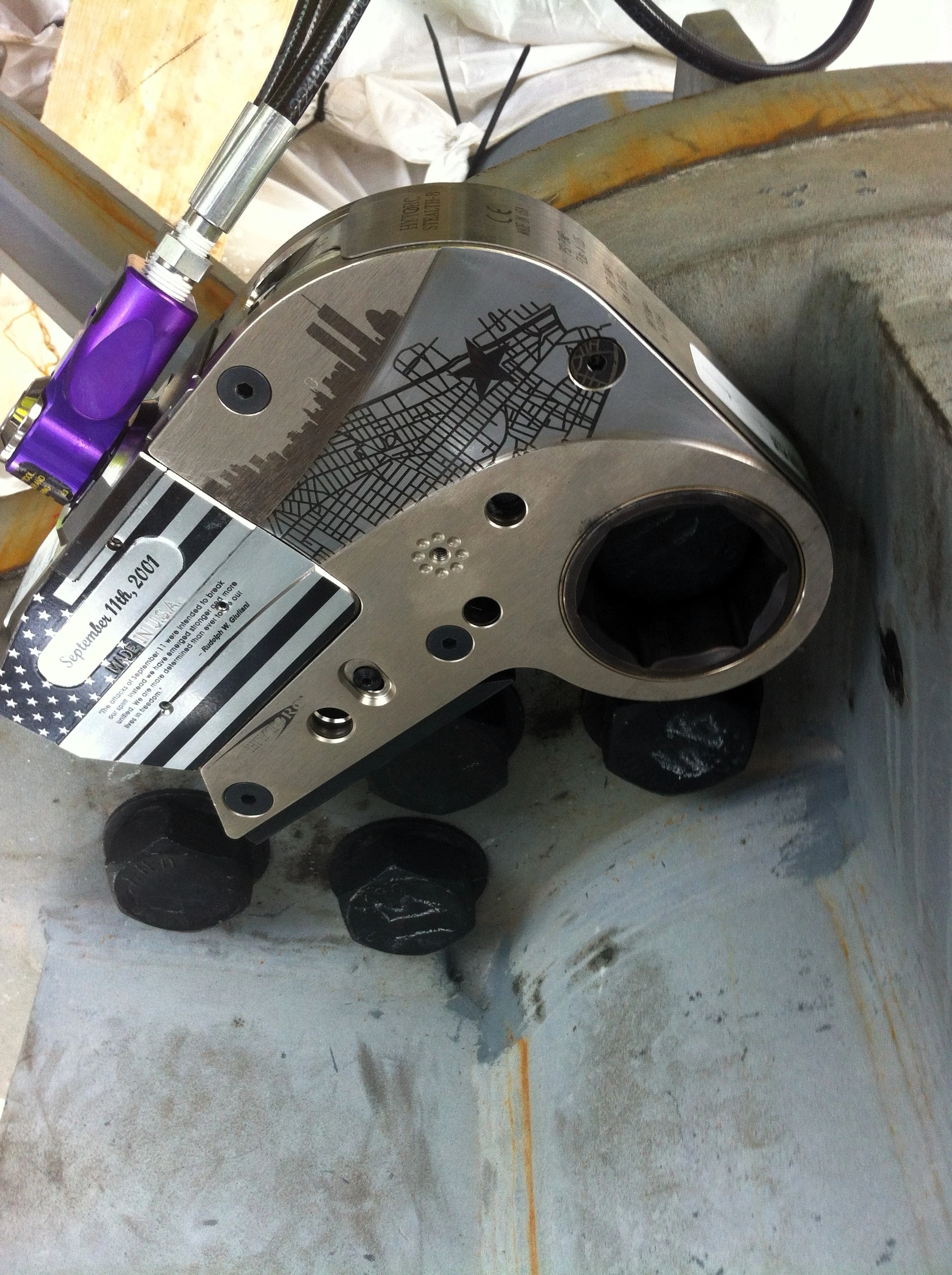

- Multi-Application Tooling: Supplied calibrated hydraulic and pneumatic bolting equipment tailored for floor-climbing cranes, communications rings, and spire connections.
- Custom Bolting Procedures: Collaborated directly with field teams to develop standardized tightening protocols for high-stress connections.
- Load Requirement Calculations: Assisted in determining precise torque-to-load parameters to guarantee uniform clamping force across all structural joints.
- Testing and Verification: Participated in testing and evaluation of bolting systems and fasteners used on the project.
Results and Impact
- Successful Assembly: Provided tools that successfully assembled and secured the climbing crane network, communications rings, and 408-foot steel spire.
- Engineering Compliance: Achieved precise bolt load across every connection in full accordance with project design specifications.
- Proven Reliability: Demonstrated the critical value of controlled bolting and joint verification on supertall structural engineering projects.
HYTORC was also honored to work on the Oculus.
