Case Study: Improving Gearbox Fastening Reliability on Vibrating Mining Screens in South Africa

Vibrating screens are among the most demanding pieces of equipment in mining operations. Continuous severe vibration places intense stress on bolted joints, making gearbox mountings particularly vulnerable to clamp load loss, fastener loosening, and unplanned maintenance downtime.

When a mineral mining company needed a safer, more reliable fastening method for a gearbox installation on a large-scale vibrating screen, they evaluated tooling designed to maximize joint integrity while protecting technicians.

The HYTORC system provides a more compact design with fewer components, its ease of handling and installation for critical items reduces unforeseen cumbersome bolting practices. The HYTORC Nut delivers the maximum bolt accuracy needed when required with minimum effort, it is an ideal concept when Safety, Speed and reliability matter the most. – John Fairhurst, Corporate Account Manager: Africa

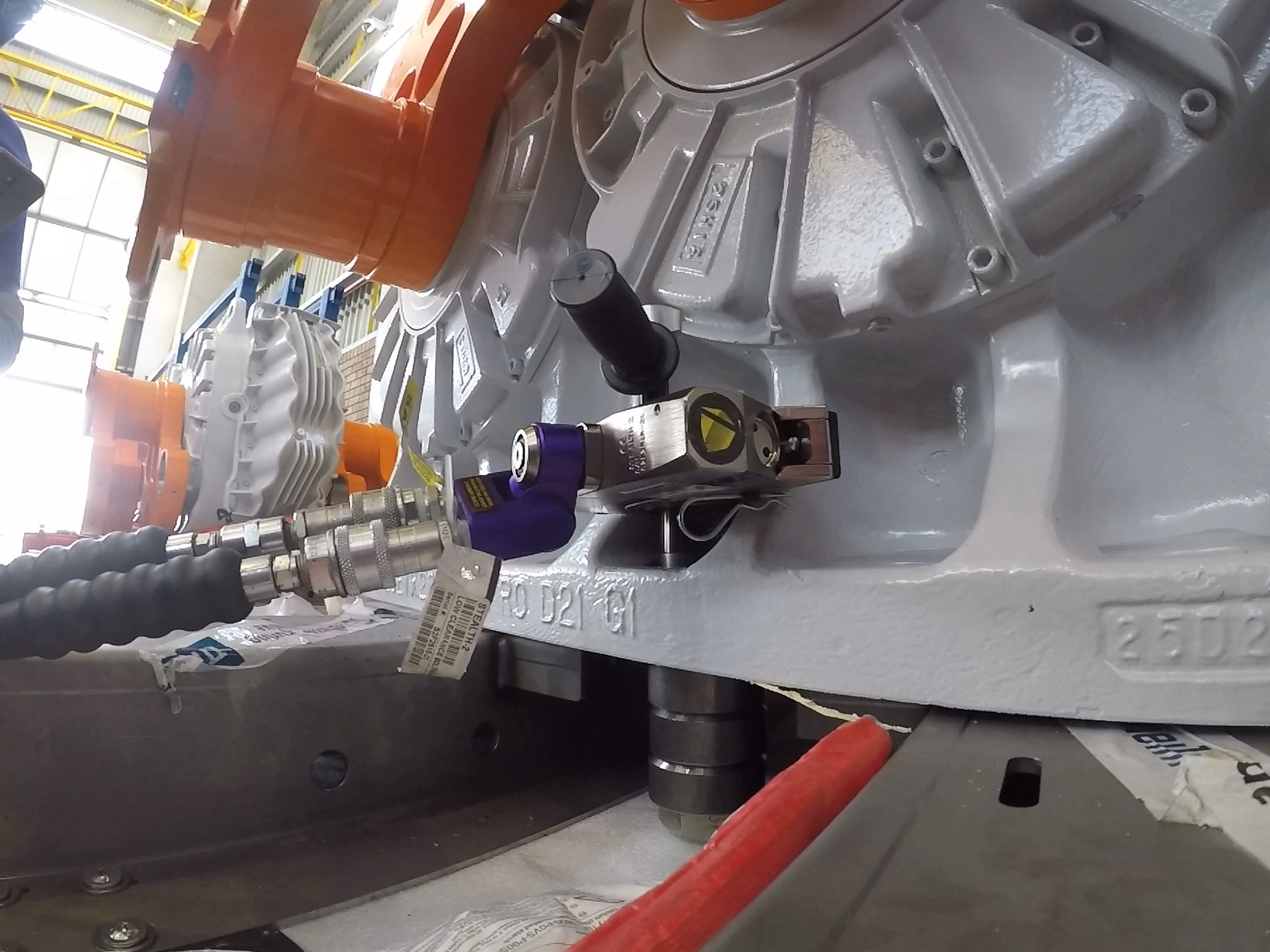

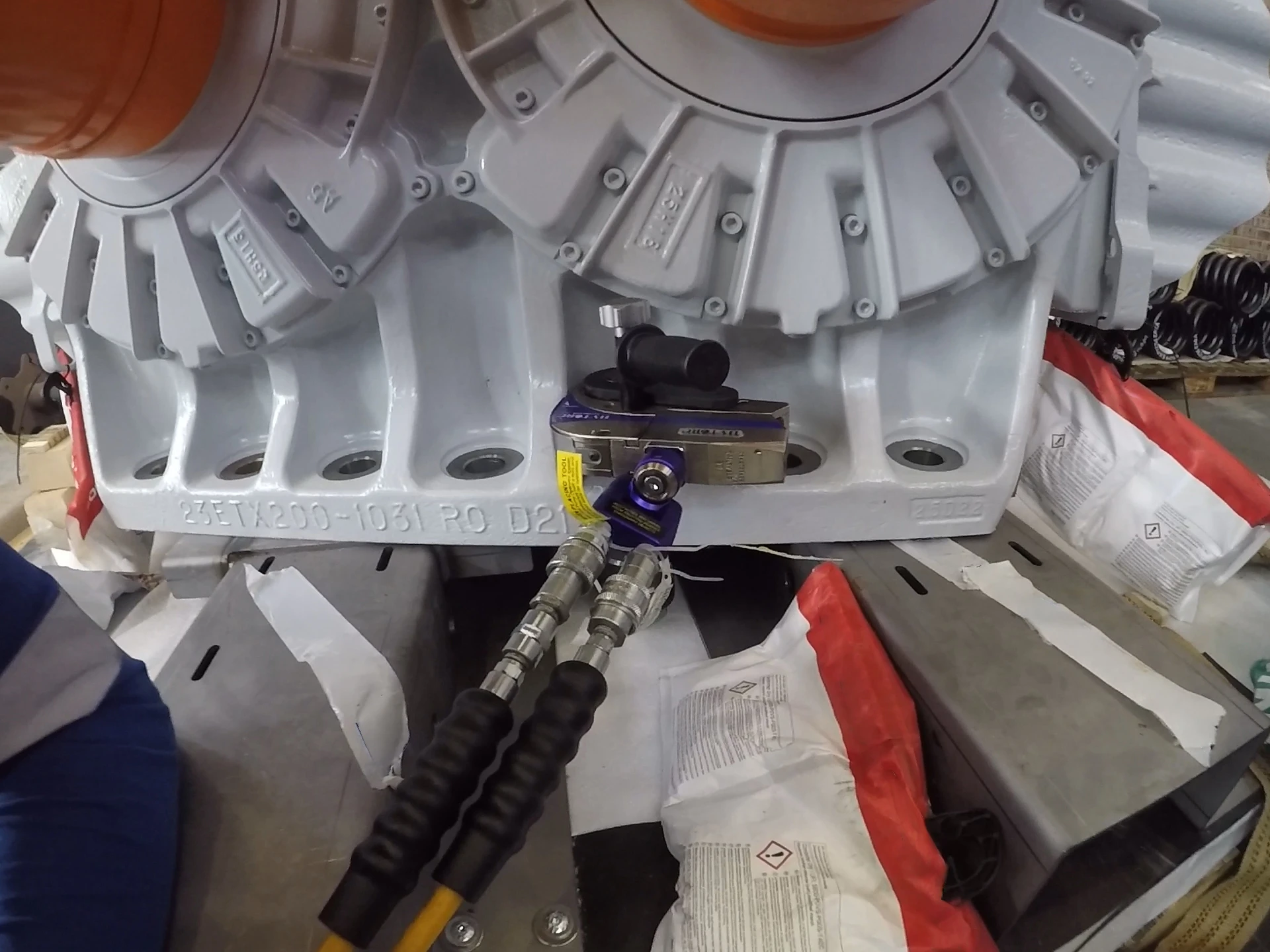

By combining the STEALTH torque tool, a hydraulic pump, and the HYTORC Nut, the customer achieved a safer, more precise, and fully controlled bolting operation. The complete elimination of pinch points immediately boosted productivity and consistency.

As a first-time user of the complete HYTORC Nut bolting system, the mining company quickly recognized advantages that traditional bolting methods simply could not deliver. They were particularly impressed by how HYTORC’s integrated design enhanced efficiency, cut time, and improved long-term bolting reliability without disrupting their standard maintenance procedures.

The Challenge: Managing Severe Vibration and Tight Clearances

Mining screens operate under continuous dynamic loads. Over time, high-frequency vibration degrades bolt preload, leading to fastener fatigue, joint failure, and frequent maintenance interventions.

To secure the gearbox assembly effectively, the maintenance team needed a bolting solution capable of meeting strict operational requirements:

• Vibration Resistance: Maintain consistent bolt preload under extreme cyclic stress.
• Operator Safety: Eliminate pinch points and tool kickback hazards.
• Limited Access: Fit into restricted clearance spaces around complex gearbox geometry.
• Maintenance Efficiency: Speed up installation during planned and unplanned outages.

Traditional bolting methods rely on external reaction arms that create severe pinch point hazards and require complex setup procedures, complicating work in tight quarters.

The Solution: HYTORC Nut System and STEALTH Hydraulic Torque Wrench

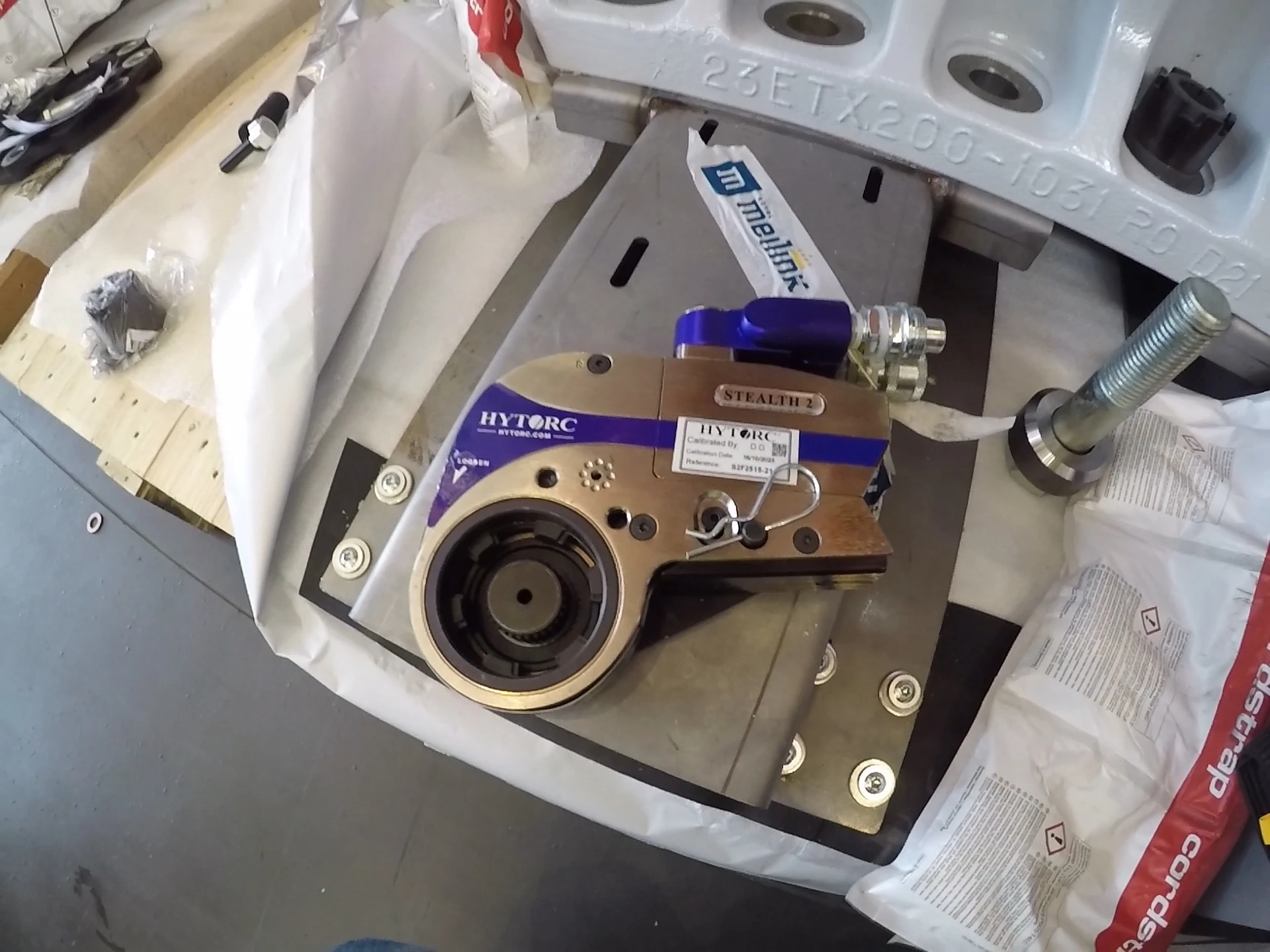

To resolve these access and safety challenges, the company selected the HYTORC Nut paired with the STEALTH Low-Clearance Hydraulic Torque Wrench.

This combination enables precise, controlled torque application without an external reaction arm. The HYTORC Nut features an integrated inner sleeve, outer sleeve, and hardened washer. Reaction forces are absorbed internally within the fastener system itself, rather than against adjacent equipment structures.

For maintenance crews working with confined gearbox housings, this reaction arm-free design eliminates traditional sideloading, protects technicians from injuries that can lead to amputation or permanent disability, and streamlines the tightening process.

Implementation and Engineering Support

HYTORC specialists partnered with the mine’s engineering team to plan the installation and establish proper bolting protocols.

• Procedural Guidance: HYTORC provided application-specific training and recommended a structured bolting sequence to ensure uniform load distribution across the gearbox flange.

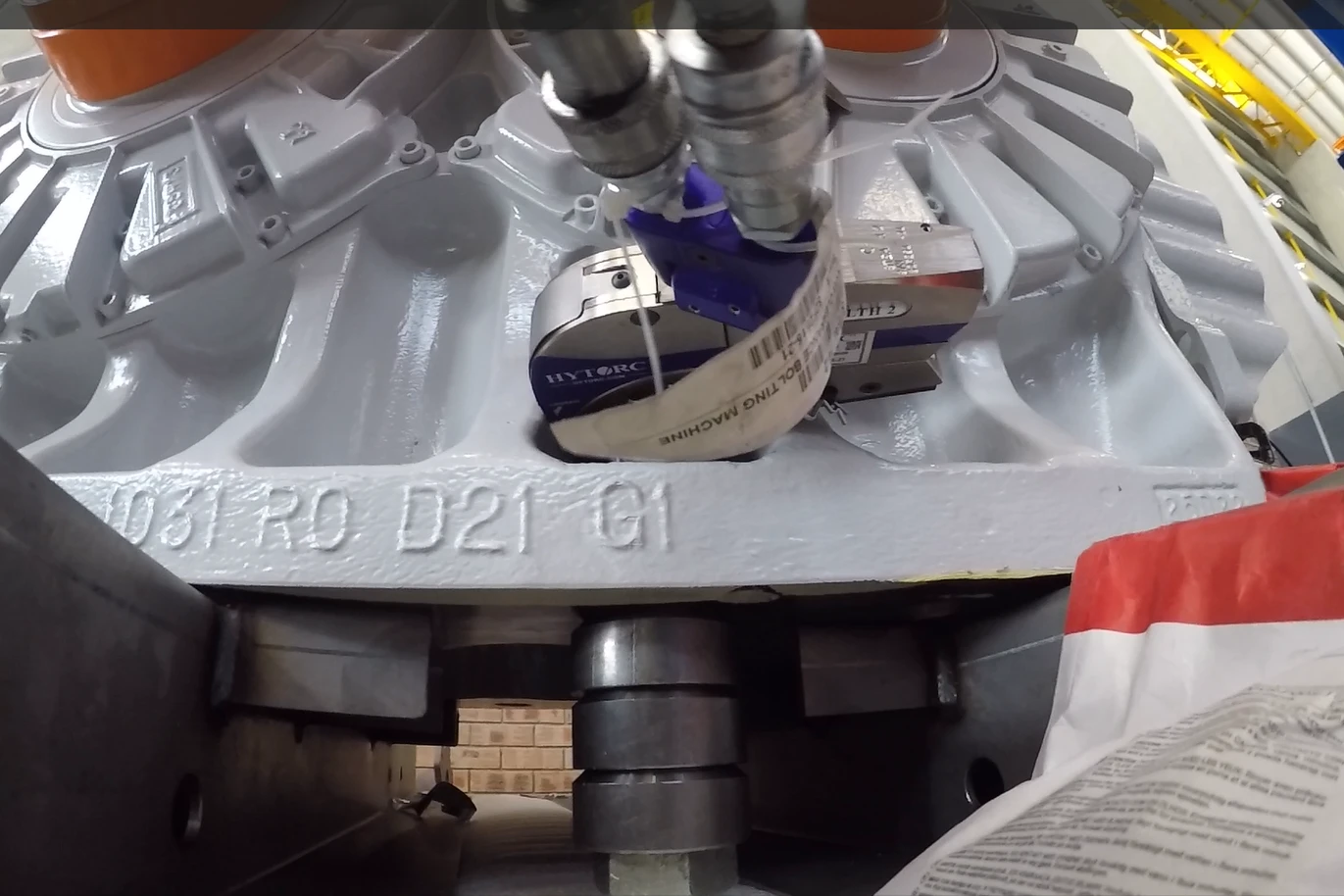

• Tooling Integration: The slim profile of the STEALTH hydraulic torque wrench, combined with the reaction-free HYTORC Nut, allowed technicians to easily access tight clearance bolts.
• Controlled Execution: Technicians achieved repeatable, accurate bolt tensioning in a single continuous process.

Results: Safer Operations, Stronger Joint Integrity

• Enhanced Worker Safety

By eliminating external reaction arms, the team completely removed dangerous pinch points and eliminated tool kickback risks. The system enabled controlled, single-operator, one-sided tightening, making installation significantly safer in confined spaces.

• Superior Load Retention and Joint Integrity

Vibration is the primary cause of bolt loosening in processing plants. The HYTORC Nut applies pure axial tension without introducing torsional stress to the bolt shank. This pure stretch preserves initial clamp load, prevents thread galling, and keeps gearbox mountings secure under relentless vibration.

• Faster Installation and Reduced Outage Time

Without the need to set up, reposition, or adjust heavy external reaction arms, technicians completed the tightening sequence faster and with far greater consistency.

• Simplified Ongoing Maintenance

Mining equipment schedules leave little room for error. Applying controlled load from one side of the joint simplified inspection routines, reduced labor overhead, and improved accessibility for future maintenance cycles.

Key Takeaways for Mining Operations

• Eliminated External Reaction Arms: Removed major pinch points and setup complexity.
• Improved Fastener Reliability: Applied pure axial stretch to resist vibration-induced loosening.
• Maximized Technician Safety: Supported single-operator, one-sided tightening in tight quarters.
• Streamlined Maintenance Downtime: Reduced labor requirements during critical repair windows.

Secure Your Critical Mining Assets

Whether you are managing vibrating screens, crushers, grinding mills, or heavy transport equipment, improper clamp load can cost millions in downtime.

Contact HYTORC today to schedule an application assessment and learn how the HYTORC Nut and STEALTH hydraulic torque wrench can improve joint integrity and safety at your facility.
